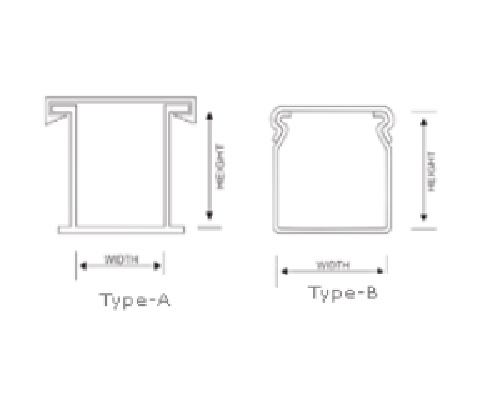

| No | Section Size HxW (mm²) |
Channel Area (mm²) | OD 2.95 mm 1.5 mm² |
OD 3.65 mm 2.5 mm² |
OD 4.35 mm 4 mm² |
|---|---|---|---|---|---|
| 1 | 15x15 | 225 | 13 | 8 | 6 |
| 2 | 15x25 | 375 | 22 | 14 | 10 |
| 3 | 25x25 | 625 | 36 | 23 | 17 |
| 4 | 30x25 | 750 | 43 | 28 | 20 |
| 5 | 40x30 | 1200 | 69 | 45 | 32 |
| 6 | 45x25 | 1125 | 65 | 42 | 30 |
| 7 | 45x30 | 1350 | 78 | 51 | 36 |
| 8 | 45x45 | 2025 | 116 | 76 | 54 |
| 9 | 45x60 | 2700 | 155 | 101 | 71 |
| 10 | 60x25 | 1500 | 86 | 56 | 40 |
| 11 | 60x45 | 2700 | 155 | 101 | 71 |
| 12 | 60x60 | 3600 | 207 | 135 | 95 |
| 13 | 75x25 | 1875 | 108 | 70 | 50 |
| 14 | 75x45 | 3375 | 194 | 126 | 89 |
| 15 | 75x60 | 4532 | 225 | 165 | 128 |
| 16 | 75x75 | 5625 | 323 | 211 | 149 |
| 17 | 100x75 | 7500 | 431 | 281 | 198 |
| 18 | 100x100 | 10000 | 575 | 375 | 264 |
Standard & Narrow Slotted
Customized
Grey

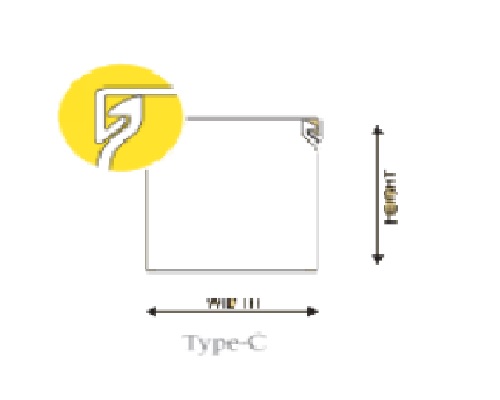

| No | Channel With Cover WxH (mm²) |
Cable Housing Capacity – No. of Wires | ||
|---|---|---|---|---|
| OD 3.18 mm (16 AWG) |
OD 3.53 mm (14 AWG) |
OD 4.01 mm (12 AWG) |
||
| 1 | 15×25 | 19 | 15 | 12 |
| 3 | 25×30 | 36 | 29 | 23 |
| 4 | 25×40 | 48 | 39 | 31 |
| 5 | 25×60 | 72 | 55 | 45 |
| 6 | 25×80 | 92 | 75 | 59 |
| 7 | 25×100 | 166 | 106 | 51 |
| 8 | 40×40 | 121 | 98 | 77 |
| 9 | 40×60 | 160 | 130 | 102 |
| 10 | 40×80 | 256 | 196 | 141 |
| 11 | 40×100 | 180 | 146 | 114 |
| 12 | 60×60 | 246 | 199 | 156 |
| 13 | 60×80 | 308 | 247 | 194 |
| 14 | 60×100 | 351 | 278 | 159 |
| 15 | 80×80 | 437 | 357 | 214 |
| 16 | 80×100 | 425 | 349 | 217 |
| 17 | 100×100 | 531 | 449 | 336 |
1 Meter
Grey
| Property | Description |
|---|---|
| Specific Gravity | 1.4 |
| Compressive Strength | 540 kg/cm² |
| Tensile Strength | 390 kg/cm² |
| Flexural Strength | 727 kg/cm² |
| Impact Strength | 3.6 cm kg/cm² |
| Working Temperature | 65°C and below |
| Specific Heat | 0.22 Cal/°C/gm |
| Thermal Expansion | 0.063 mm/m°C |
| Thermal Conductivity | 4.0 Cal/sec sq.cm/°C/cm × 10⁻⁴ |
| Water Absorption | 0.10% in 24 hrs |
| Hardness | 70 Duro D |
| Dielectric Constant | 1.7 (60 cps at 30°C) |
| Power Factor | 2.52 (60 cps at 30°C) |
| Dielectric Strength | 30 Kv/mm |
| Burning Rate | Self Extinguishing |
| Modulus Elasticity in Tension | 19,800 kg/cm² |
